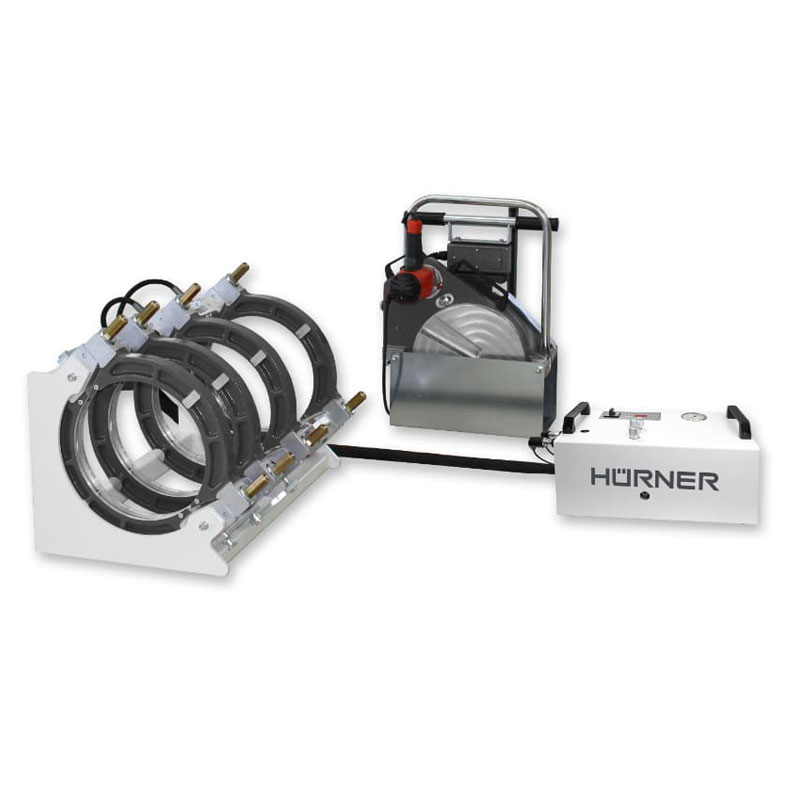

WhiteLine SmartLine 2.0

Description

Product information

• The manually Hydraulic Series of butt-welding machines in the new WhiteLine generation makes a statement by its superior manufactur- ing quality and its scalability in the form of an easy upgrade to a data logging-enabled machine with the installation of an SPG 2.0 data logger for welding report generation. The hydraulic unit also doubles as the cen- tral control unit of the machine with which the user performs all relevant settings steps. The front panel features a GT keypad to adjust the temperature of the heating ele- ment and the extra-large and conveniently readable pressure gauge. All HÜRNER manually Hydraulic butt- welding machines can easily be upgraded with the HÜRNER data logger SPG 2.0 for welding parameter viewing, monitoring, and recording. As a consequence the model version “Manual + SPG” of the butt-welding machine complies with mains gas distribu- tors’ specification requirements, which state that data recording and report generation is mandatory, but do not require automatic welding processes. The machine chassis is set on a specifically developed support frame exhibiting a warp resistance that manages with ease even the most extreme pipe parameters. Operators can be sure that the machine chassis does not tilt or twist even when very long lengths of pipe with very thick walls are processed. The facing tool with integrated micro-safety switch is driven by a high-quality power drive engaged by a transmission chain. The precision PTFE-coated heating element ships with a very rugged anti-stick coating. A carrying rack is provided for the heating element and the facing tool, to store them with no worries about the heat. Maximum protection of the machine, while it is stowed away, is provided (up to O.D. 355) by an optionally available, high-quality transport box that has been specifically designed for the entire machine assembly, with drawer-style storage com- partments for the reducer inserts. For all machines a welding neck support is of course available, too.

Resources

• JPEG
• JPEG
• 160 mm / 250 mm / 315 mm / 355 mm
• 500 mm / 630 mm
